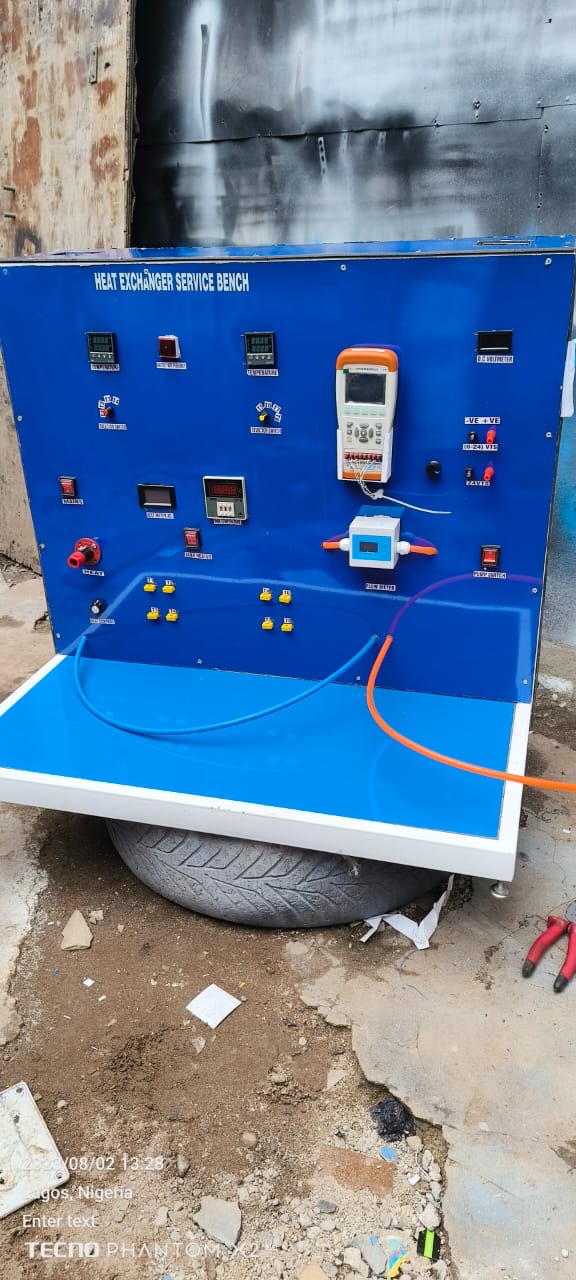

Heat Exchanger Service Unit for Heat Transfer Experiments
Heat Transfer
The Heat Exchanger Service Unit is a laboratory system designed to study and analyze heat transfer processes in different types of heat exchangers.
Blue bar chart with three vertical bars of increasing height, the highest bar topped with a blue circle.
Category
Heat Transfer
Blue icon of a classical building with columns representing a bank or institution.
Application
Engineering education and demonstrationsIndustrial process simulation, Research in energy systems
Blue check mark inside a circular arrow representing a completed or refreshed task.
Condition
Blue crossed wrench and screwdriver icon on black background representing tools or settings.
Customizable

Key Features

  • Integrated control panel with measurement displays
  • Multiple sensor inputs (temperature, flow, etc.)
  • Compatible with various heat exchanger modules
  • Real-time monitoring of system parameters
  • Durable and robust construction
  • Easy-to-operate interface
  • Flexible connections for different setups
  • Designed for teaching and experimental use

    • ‍

    Technical Specification

  • Power Supply: 220V / 50Hz
  • Measurement Parameters: Temperature, flow rate, pressure (model dependent)
  • Sensors: Thermocouples / temperature sensors
  • Flow System: Pump with controlled circulation
  • Control Type: Digital / Analog interface
  • Material: Mild steel / Stainless steel components
  • Display: Digital indicators for readings
  • Compatibility: Supports multiple heat exchanger types (shell & tube, plate, etc.)
  • Mounting: Floor standing unit

    • ‍
