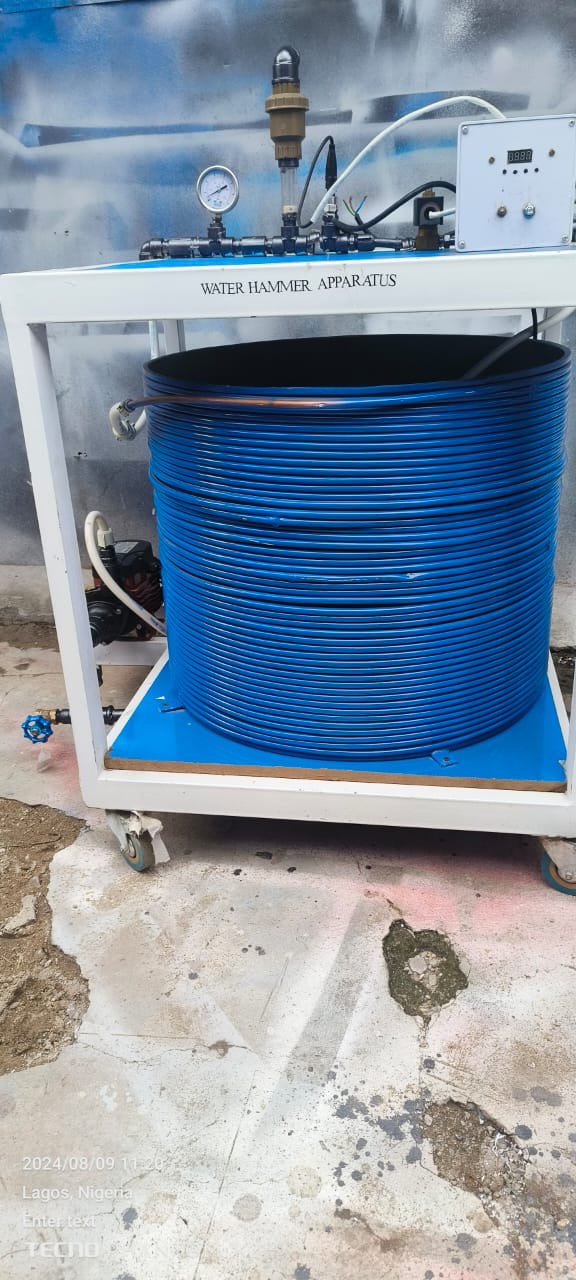

Water Hammer Apparatus for Fluid Mechanics & Pipeline Pressure Analysis
Fluid Mechanics Equipment
Water Hammer Apparatus is designed to demonstrate and study the phenomenon of water hammer (pressure surge) in pipelines caused by sudden valve closure or flow changes
Blue bar chart with three vertical bars of increasing height, the highest bar topped with a blue circle.
Category
Fluid Mechanics Equipment
Blue icon of a classical building with columns representing a bank or institution.
Application
Fluid mechanics laboratories ,Hydraulic engineering studies ,Pipeline pressure analysis
Blue check mark inside a circular arrow representing a completed or refreshed task.
Condition
Blue crossed wrench and screwdriver icon on black background representing tools or settings.
Customizable

Key Features

  • Transparent or visible pipeline system for demonstration
  • Pressure gauge for real-time readings
  • Controlled valve for sudden flow changes
  • Durable frame with mounted components
  • Recirculating water system
  • Easy to operate and maintain
  • Mobile design with wheels
  • Suitable for teaching and experimental analysis

‍

Technical Specification

  • Pipe Material: PVC / Transparent tubing
  • Pipe Length: Long coiled or straight pipeline
  • Pressure Measurement: Analog / Digital pressure gauge
  • Flow Control: Manual valve system
  • Pump Type: Recirculating water pump
  • Frame: Mild steel with coating
  • Power Supply: 220V / 50Hz
  • Mounting: Floor standing with wheels
  • Measurement: Pressure surge and transient flow

    • ‍
